Hyundai Azera: Air Ventilation Seat Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Components and Components Location

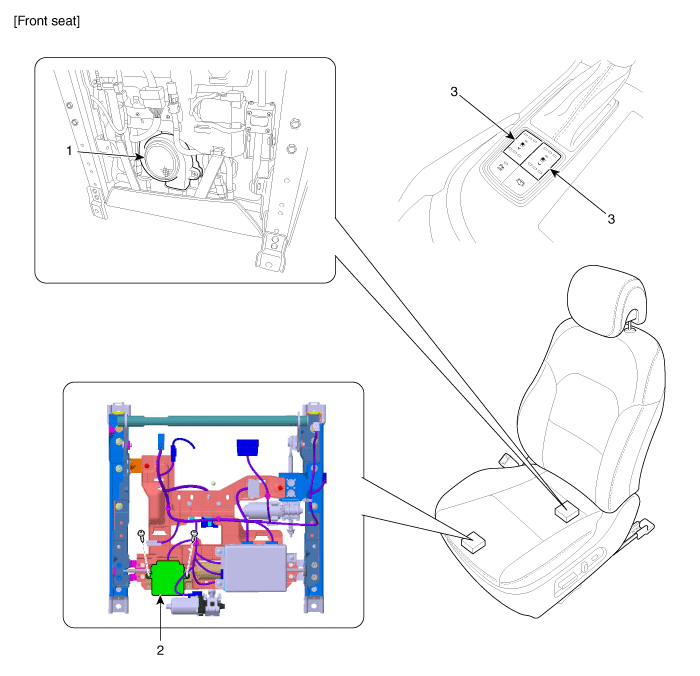

| Components (1) |
| 1. Ventilation blower 2. Ventilation ECU | 3. Ventilation seat switch |

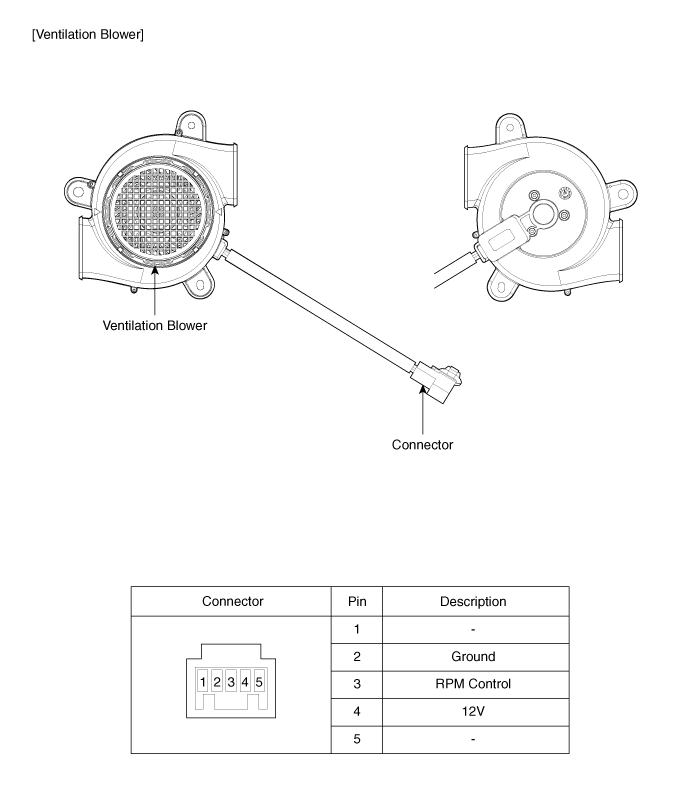

| Components (2) |
Seat Heater Switch Repair procedures
Inspection
Front Seat Heater Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the floor console upper cover.
(Refer to Body - "Floor Console Assembly")
3.
Remove the sea ...
Air Ventilation Seat Schematic Diagrams
Circuit Diagram
...
