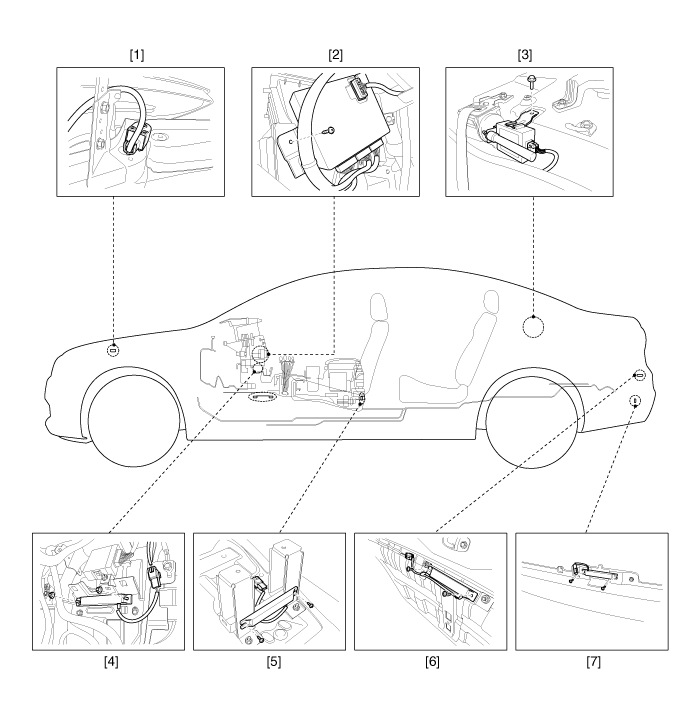

| Component Location (1) |
| 1. Buzzer 2. RF receiver 3. Smart key unit 4. Interior antenna 1 | 5. Interior antenna 2 6. Trunk antenna 7. Bumper antenna |

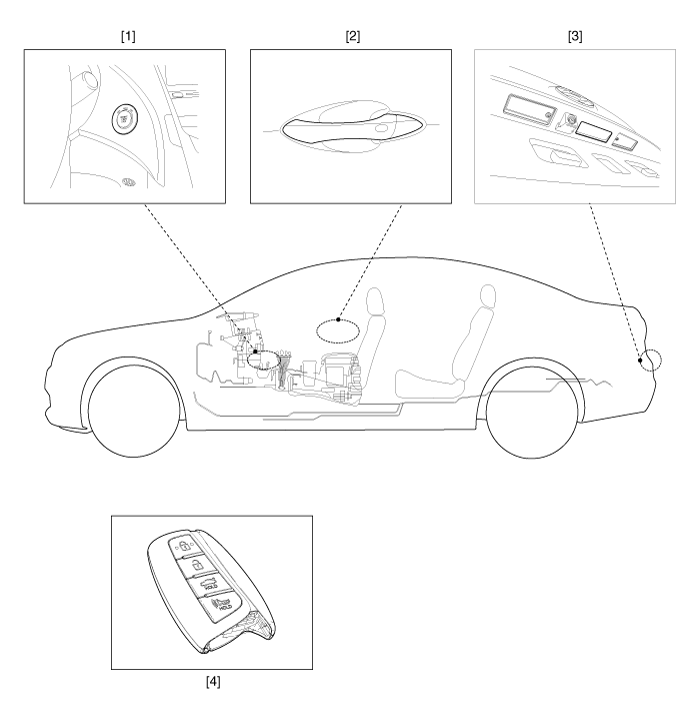

| Component Location (2) |
| 1. Start Stop Button (SSB) 2. Door outside handle & Button | 3. Trunk lid open switch 4. FOB key |
Specifications
Specification
Smart Key Unit
ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-30°C ~ 80°C (-22°F ~ 176°F)LoadMax. 6mA
Smart Key FOB
ItemsSpecificationB ...
Description and Operation
Description
Communication network diagram
AbbreviationExplanationC_CANChassis Controller Area NetworkB_CANBody Controller Area NetworkMM_CANMulti media Controller Area NetworkSMKSmart Key ECUDDM ...
