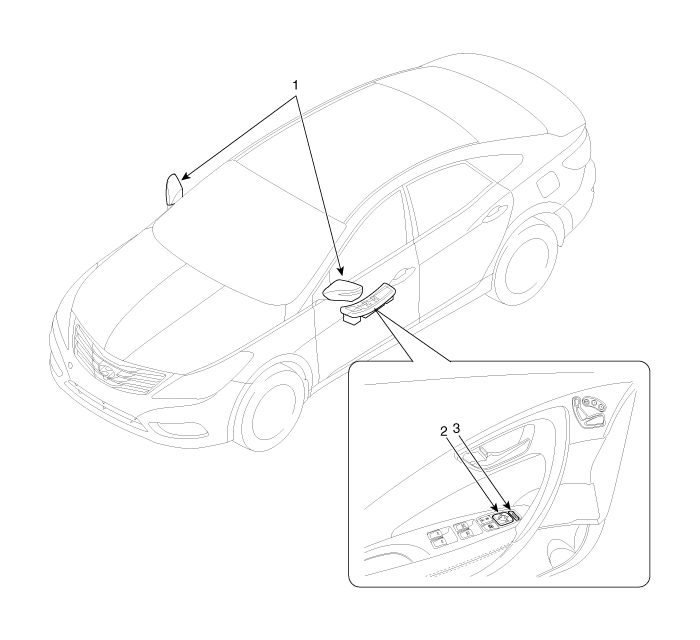

| Component Location |
| 1. Power door mirror 2. Power door mirror switch | 3. Power folding mirror switch |
