| Component Location |

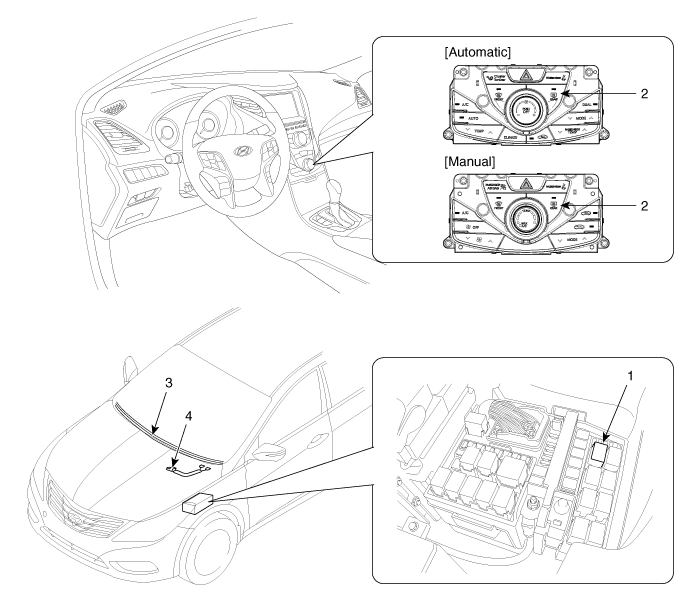

| 1. Windshield deicer relay (Built-in engine room relay box) 2. Windshield deicer switch (Rear glass defogger switch) | 3. Windshield deicer 4. Deicer connector |
Description and Operation
Description
Windshield deicer system prevent windshield wiper from
freezing in the winter season. It consists of deicer in the lower part
of windshield, switch and relay. IPM receives an input ...
