Hyundai Azera: Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Rear Glass Defogger / Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Rear Glass Defogger / Components and Components Location

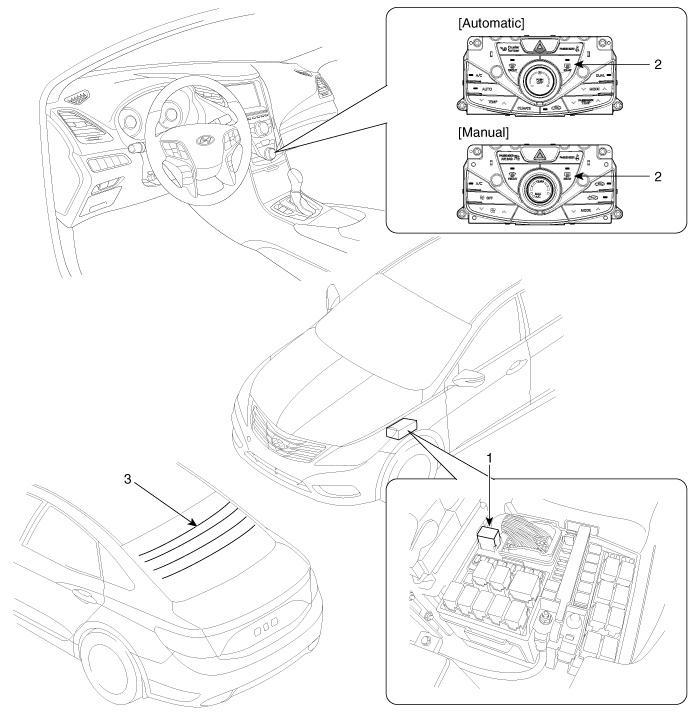

| Component Location |
| 1. Rear glass defogger relay (Engine room relay box) 2. Rear glass defogger switch (A/C controller) | 3. Rear glass defogger |
