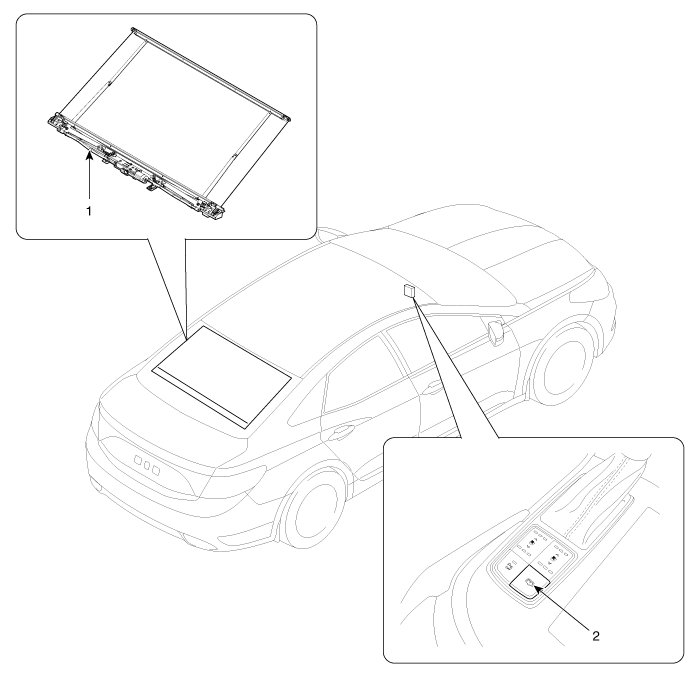

| Component Location |
| 1. Rear curtain | 2. Rear curtain switch (Floor console upper cover) |
Description and Operation
Description
You can up & down rear curtain automatically by pressing
the rear curtain switch. Rear curtain protect passenger from a direct
ray of light by covering rear glass.
...
