| Components Location |

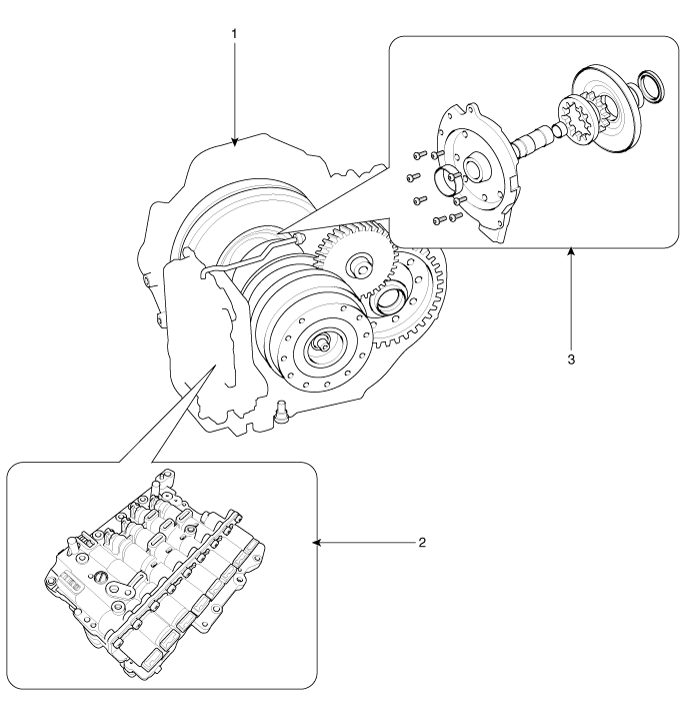

| 1. Automatic transaxle 2. Valve body assembly 3. Oil pump assembly |
Description and Operation
Description
The hydraulic system consists of oil, an oil filter, an oil
pump, and a valve body (valves and solenoid valves). The oil pump is
powered by the engine. ATF passes through the oil fi ...
