| Components Location |

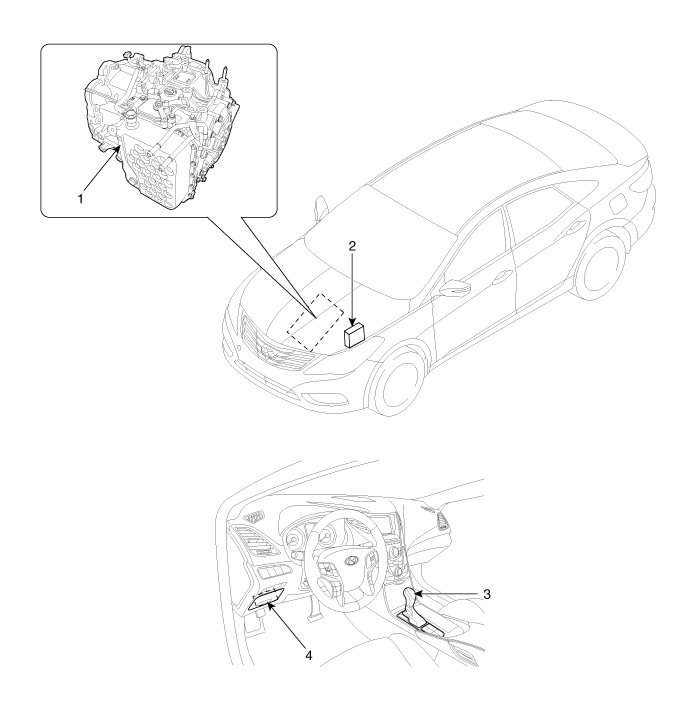

[Vehicle Components]
| 1. Automatic transaxle 2. Transaxle Control Module (TCM) | 3. Shift lever 4. Date Linke Connector (DLC) |

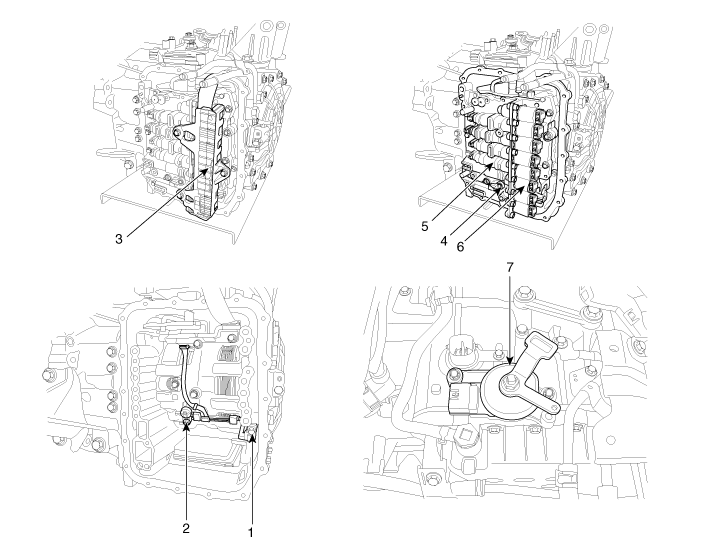

[Transaxle Components]
| 1. Input speed sensor 2. Output speed sensor 3. Solenoid valve connect 4. Oil Temperature Sensor (OTS) | 5. Valve body assembly 6. Solenoid valve 7. Inhibitor switch |
Schematic Diagrams
Circuit Diagram
...
Transaxle Control Module (TCM) Description and Operation
Description
Transaxle Control Module (TCM) is the automatic transaxle's
brain. The module receives and processes signals from various sensors
and implements a wide range of transaxle controls t ...
