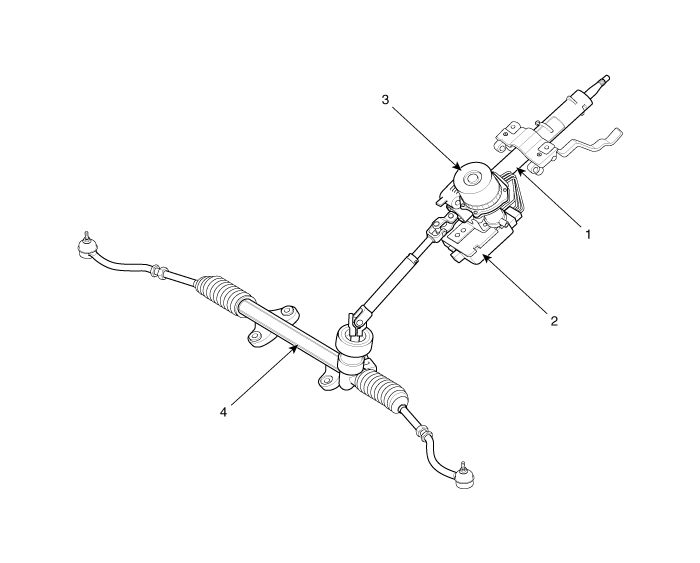

| Components |
| 1. Steering column 2. ECU | 3. Motor 4. Steering gear box |
Description and Operation
Description
•
EPS (Electric power steering, Column assist type) system uses
an electric motor to assist the steering force and it is an engine
operation independent steering system.
...
Schematic Diagrams
MDPS Circuit Diagram
Harness Connector
TypePin NoDescriptionBattery1Battery +2Battery -Vehicle1IGN2-3-4-5-6-7High_CAN8Low_CAN
...
