Hyundai Azera: Engine Hanger Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Hanger Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Hanger Components and Components Location

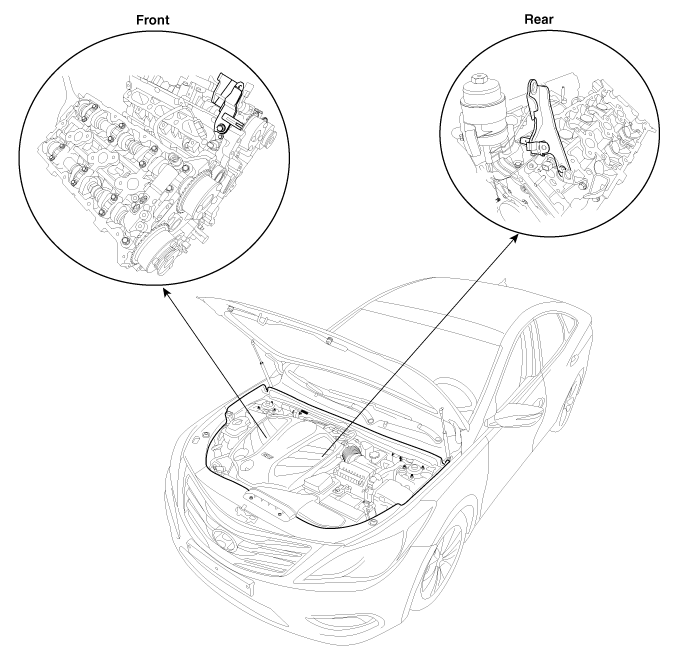

| Components Location |
Engine And Transmission Assembly Repair procedures
Removal
•
Use fender covers to avoid damaging painted surfaces.
•
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
...
Engine Hanger Repair procedures
Removal and Installation
[Front engine hanger]
1.
Remove the front engine hanger (A)
Tightening torque:
44.1 ~ 53.6N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)
2.
Install in the reverse ord ...
