Hyundai Azera: Front Door Latch Components and Components Location - Front Door - Body (Interior and Exterior) - Hyundai Azera 2011-2019 Service ManualHyundai Azera: Front Door Latch Components and Components Location

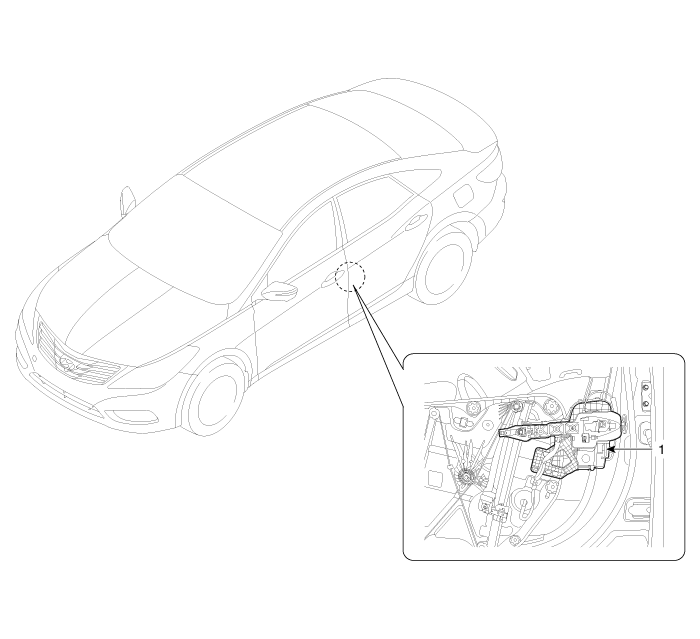

Component Location

1. Front door latch


Front Door Outside Handle Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the front door outside handle cover (A). Tightening torque : 0.7 ~ 0.5 N.m (0.07 ~ 0.1 kgf.m, 1.0 ...

Front Door Latch Repair procedures
Replacement 1. Remove the front door module. (Refer to Front Door - "Front Door Module") 2. Disconnect the connector (A) and front door latch wiring harness. 3. Remove the front door latc ...
