Hyundai Azera: Front Seat Assembly Components and Components Location

Components and Components Location

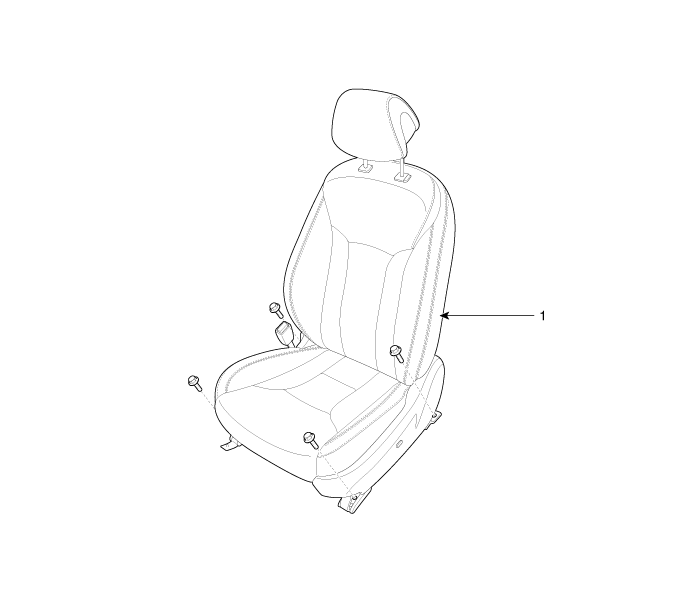

Components 1. Headrest2. Headrest guide3. Front seat back cover4. Front seat back pad5. Front seat back warmer6. Front seat back board7. Front seat back frame assembly8. Front seat cushion frame ...

Front Seat Assembly Repair procedures

Replacement 1. Remove the front seat track mounting cover. 2. After loosening the seat assembly mounting bolts, remove the front seat assembly (A). Tightening torque : 49.0 ~ 63.7N.m (5.0 ...
