Hyundai Azera: Fuel Pressure Control Valve (FPCV) Troubleshooting
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV) Troubleshooting

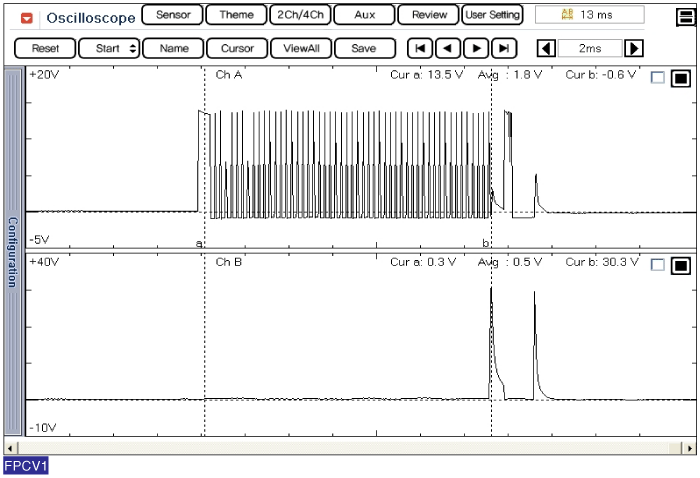

| Signal Waveform |
Fuel Pressure Control Valve (FPCV) Specifications
Specification
ItemSpecificationCoil Resistance (?)1.04 ~ 1.27 [23°C(73.4°F)]
...
Fuel Pressure Control Valve (FPCV) Schematic Diagrams
Circuit Diagram
...
