Hyundai Azera: General Information - Lift And Support Points - General Information - Hyundai Azera 2011-2024 Service ManualHyundai Azera: General Information

Lift And Support Points
Lift And Support Points

When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substantial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.

Since each tire/wheel assembly weights approximately 30lbs (14kg), placing the front wheels in the luggage area can assist with the weight distribution.
Use the same support points to support the vehicle on safety stands.
1.

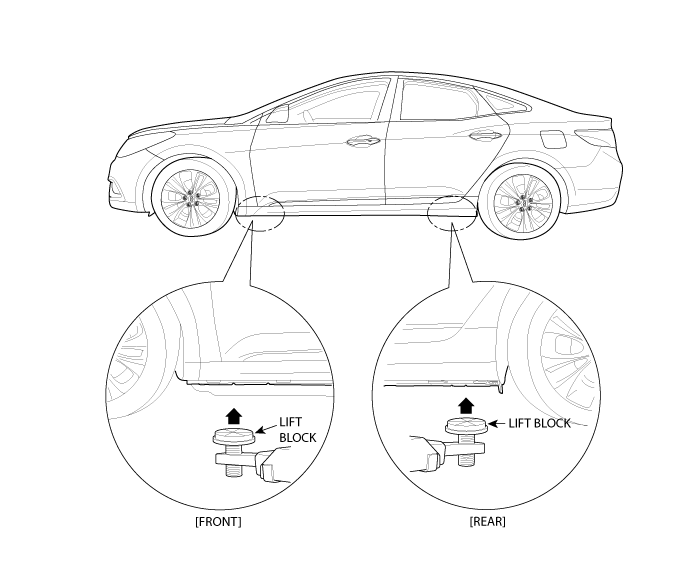

Place the lift blocks under the support points as shown in the illustration.
2.
Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported.
3.
Raise the hoist to full height to inspect the lift points for secure support.


Using scissors lift

Using a scissors lift may cause damage of the side out seal molding panel because the lift point is located higher than side out seal molding panel.

Place wooden or rubber blocks (more than 50mm (1.9685in) in height) between lift and vehicle lift point to prevent damage of the side out seal molding panel.

Using 2 post lift
Using a 2 post lift, there can be interference in lift arm and side out seal molding panel so that it can be damaged.

Adjust the telescopic pad height (3-stage arm : more than 185mm (7.2835in), 2-stage arm : more than 195mm (7.6772in)) before lift up vehicle.

Check the contact surface between lift arm and side out seal molding panel during lift up the vehicle.
Lift And Support Points
...

Towing
...
