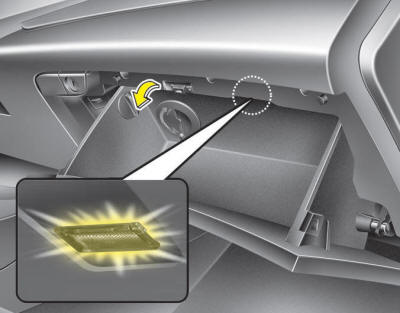

Hyundai Azera: Glove box lamp
The glove box lamp comes on when the glove box is opened.
The parking lights or headlights must be ON for the glove box lamp to function.
CAUTION
To prevent unnecessary charging system drain, close the glove box securely after using the glove box.
Door courtesy lamp
The door courtesy lamp comes ON when the door is opened to assist entering or
exiting the vehicle. It also serves as a warning to passing vehicles that the vehicle
door is opened. ...
Vanity mirror lamp
Opening the lid of the vanity mirror will automatically turn on the mirror light.
CAUTION
To prevent unnecessary charging system drain, close the vanity mirror cover
after using the mirror. ...
