Press the
key
Select [Contacts]

The list of saved phone book entries is displayed. Select the
button to download the call history.

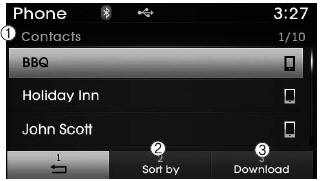

1) Contacts List :
-Displays downloaded contacts entries
-Connects call upon selection
2) Sort by : Find a contact in an alphabetical order.
3) Download : Download contacts entries
✽ NOTICE
- Up to 1,000 contacts saved in your Bluetooth® Wireless Technology phone
can be downloaded into the car contacts. Contacts that have been downloaded
to the car cannot be edited or deleted on the phone.
- Mobile phone contacts are managed separately for each paired Bluetooth®
Wireless Technology device (max 5 devices x 1,000 contacts each). Previously
downloaded data is maintained even if the Bluetooth® Wireless Technology device
has been disconnected. (However, the contacts and call history saved to the
phone will be deleted if a paired phone is deleted.)
- It is possible to download contacts during Bluetooth streaming audio.
- When downloading contacts, the icon will be displayed within the status
bar.
- It is not possible to begin downloading a contact list when the contact
download feature has been turned off within the Bluetooth® Wireless Technology
device. In addition, some devices may require device authorization upon attempting
to download contacts. If downloading does not normally occur, check the Bluetooth®
Wireless Technology device settings or the screen state.
- The contacts download feature may not be supported in some mobile phones.
For more information of supported Bluetooth® devices and function support, refer
to your phone’s user manual.
Press the key
Select [Call History]
A list of incoming, outgoing and missed calls is displayed.
Select the button to download the
call history.
1) Call History :
- Displays recent calls (ca ...
Pairing a New Device
Press the key
Select [Phone]
Select [Pair Phone]
Bluetooth® Wireless Technology devices can be paired with the audio system.
For more information, refer to the “Pairin ...
