| Component |

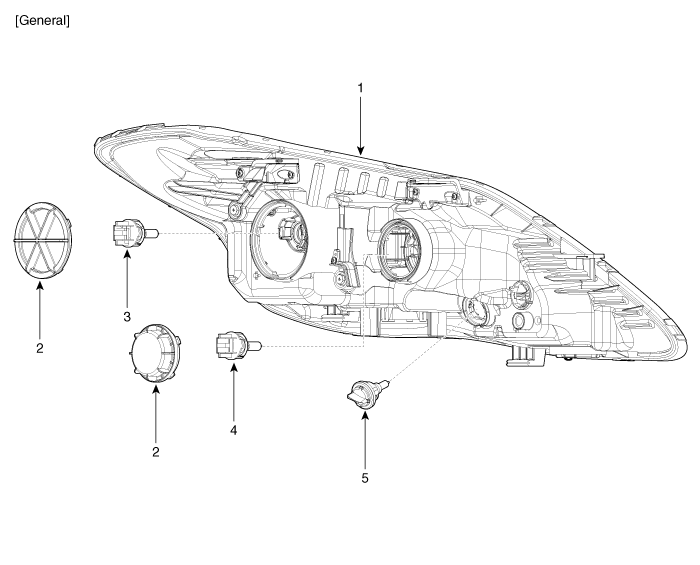

| 1. Head lamp assembly & housing 2. Dust cap 3. Head lamp(Low) bulb | 4. Head lamp(High) bulb 5. Turn signal lamp bulb |

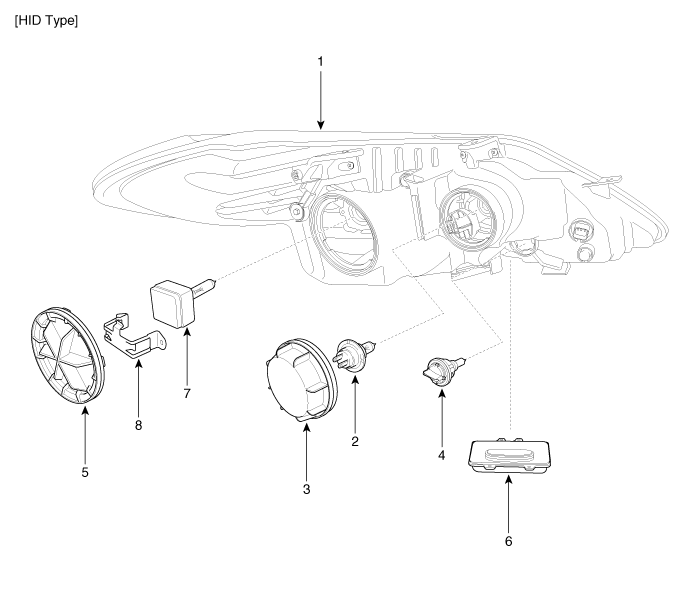

| 1. Head lamp assembly lens & housing 2. Head lamp(High) bulb 3. Dust cover(High) 4. Turn signal lamp / Tail lamp | 5. Dust cover(Low) 6. Ballast 7. Head lamp(Low) bulb(HID) & Ignitor 8. HID bracket |
Components and Components Location
Component Location (1)
1. Head lamp (Low)2. Head lamp (High)3. Position lamp (LED)4. Front turn signal lamp5. Side marker6. Overhead console lamp (General/Panoramaroof)7. Room lamp (General) ...
