Hyundai Azera: ICM (Integrated Circuit Module) Relay Box Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Body Electrical System / Fuses And Relays / ICM (Integrated Circuit Module) Relay Box Components and Components Location

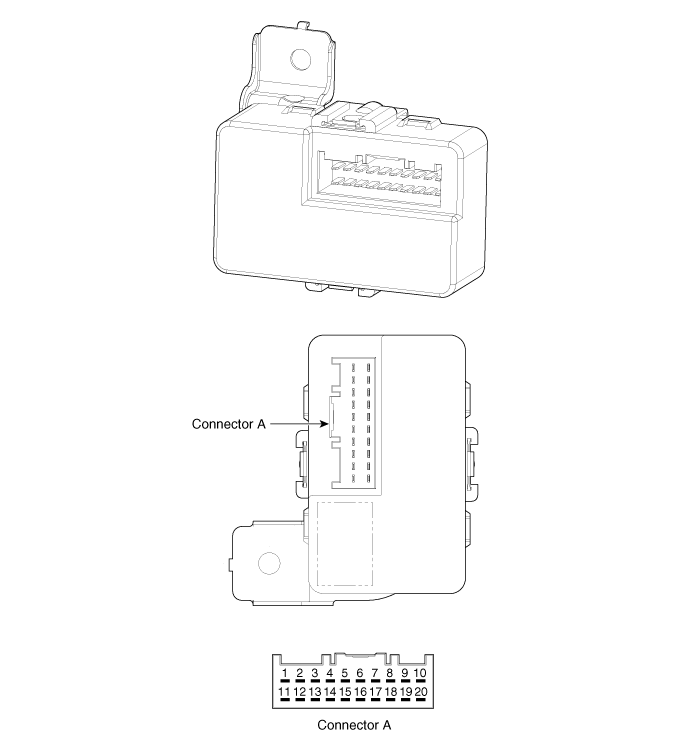

| Component |
Input/Output Specification
| No. | Connector | No. | Connector |
| 1 | - | 11 | - |
| 2 | - | 12 | - |
| 3 | Burglar horn | 13 | - |
| 4 | - | 14 | - |
| 5 | Engine room box(Horn 15A fuse) | 15 | GND |
| 6 | IPM(BCM : Burglar alarm horn) | 16 | IPM(BCM:DRV DR UNLOCK) |
| 7 | - | 17 | IPM(DR LOCK 20A) |
| 8 | Engine room box(Horn 15A fuse) | 18 | DR LOCK ACTR DRI |
| 9 | - | 19 | - |
| 10 | - | 20 | - |
ICM (Integrated Circuit Module) Relay Box Specifications
Specification
Rated voltageDC 12VOperating voltageDC 9 ~ 16VUse of temperature range-30°C ~ 75°CPreserve temperature range-40°C ~ 85°CInsulation resistance100M? MIN. / 500VM
...
ICM (Integrated Circuit Module) Relay Box Schematic Diagrams
Circuit Diagram
...
