Hyundai Azera: Oil Filter Body Components and Components Location - Lubrication System - Engine Mechanical System - Hyundai Azera 2011-2024 Service ManualHyundai Azera: Oil Filter Body Components and Components Location

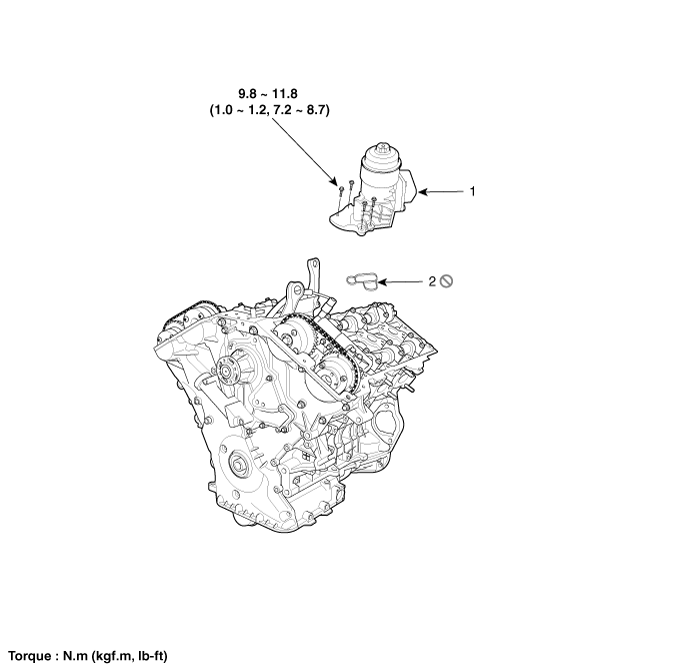

Components

1. Oil filter body
2. Gasket

Oil Filter Repair procedures
Replacement 1. Remove the engine cover. 2. Wait for 5 minutes after loosening the oil filter cap to drain well the oil in the oil filter. 3. Replace the oil filter. (1) Disconnect the ...

Oil Filter Body Repair procedures
Removal and Installation 1. Remove the water pipe. (Refer to Cooling System - "Water Pipe") 2. Wait for 5 minutes after loosening the oil filter cap to drain well the oil in the oil filter. ...
