Hyundai Azera: Opening the trunk
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Trunk / Opening the trunk
- Press the trunk unlock button for more than 1 second on the smart key.
- Press the switch on the trunk handle with the smart key in your possession
(2).
- Insert the mechanical key of the smart key into the lock and turn it clockwise (1).

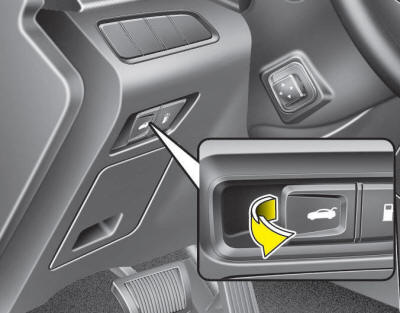

To open the trunk from inside the vehicle, pull out the trunk lid release lever.
The trunk swings upward. Make sure no objects or people are near the rear of the vehicle when opening the trunk.
✽ NOTICE
In cold and wet climates, trunk lock and trunk mechanisms may not work properly due to freezing conditions.
CAUTION - Trunk lift cylinders
Make certain that you close the trunk before driving your vehicle. Possible damage may occur to the trunk lift cylinders and attached hardware if the trunk is not closed prior to driving.
Trunk
...
Closing the trunk
To close, lower the trunk lid, then press down on it until it locks. To be sure
the trunk lid is securely fastened, always check by trying to pull it up again.
Once the trunk is opened and then clos ...
