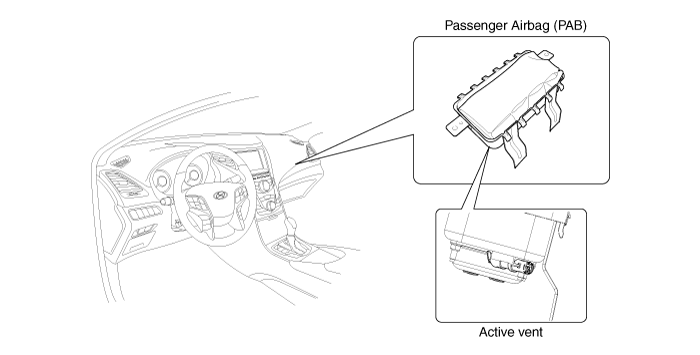

Hyundai Azera: Passenger Airbag (PAB) Module Components and Components Location

Passenger Airbag (PAB) Module Description and Operation

Description Passenger Airbag (PAB) module is located in the passenger crash pad. This PAB contains 2 firing squibs of airbag and 1 firing squib of active vent. Depending of crash speed or the t ...

Passenger Airbag (PAB) Module Repair procedures

Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the glove box housing. (Refer to Body - "Glove box housing") 3. Remo ...
