Hyundai Azera: Radiator Hose Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Radiator Hose Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Cooling System / Radiator Hose Components and Components Location

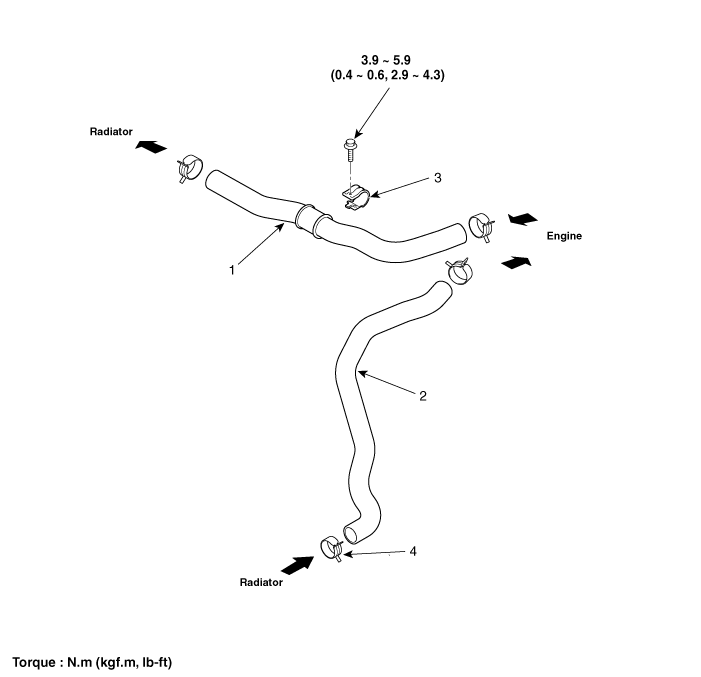

| Components |
| 1. Radiator upper hose 2. Radiator lower hose | 3. Hose clip 4. Clamp |
Heater Hose Repair procedures
Removal and Installation
1.
Remove the air duct and air cleaner assembly.
(Refer to Intake And Exhaust System - "Air Cleaner")
2.
Drain the coolant.
(Refer to Cooling System - "Coolant")
...
Radiator Hose Repair procedures
Removal and Installation
1.
Remove the battery and tray.
(Refer to Engine Electrical System - "Battery")
2.
Remove the air duct and air cleaner assembly.
(Refer to Intake And Exhaust Syste ...
