Hyundai Azera: Rear Bumper Cover Components and Components Location

Components and Components Location

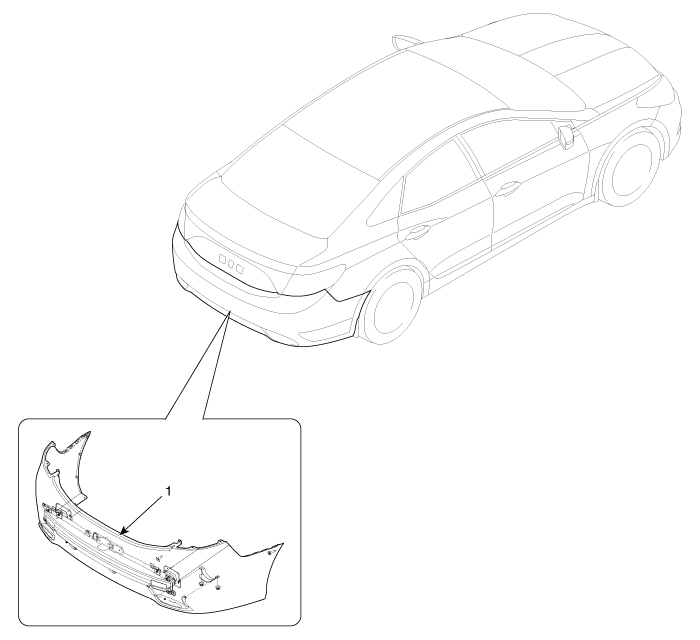

Components 1. Rear bumper cover2. Rear bumper lower side bracket3. Rear bumper side bracket ...

Rear Bumper Cover Repair procedures

Replacement     • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface. • Take care not to bend or scratch the trim and ...
