| Inspection |
| 1. |
The rear glass defogger switch inputs can be checked using the GDS. |
| 2. |
To check the input value of rear glass defogger switch, select option "IPM". |
| 3. |

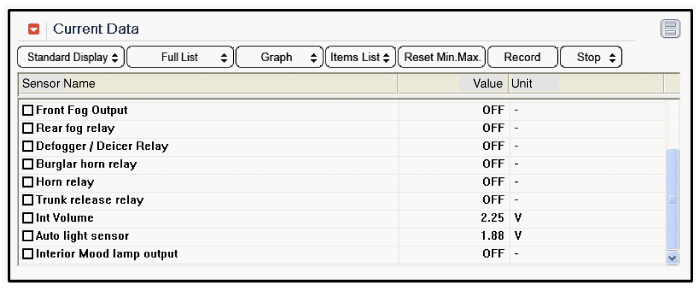

To consult the present input/output value of IPM, "Current
DATA". It provides information of IPM input/output conditions of rear
defogger relay.
|
| 4. |

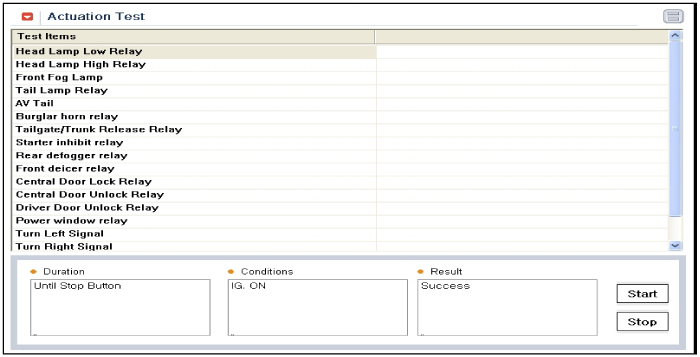

To check the input value of rear glass defogger switch in force mode, select option "Actuation Test".
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the center fascia panel.
|
| 3. |
Remove the heater control unit (A) after removing screws.
|
| Installation |
| 1. |
Install the heater control unit. |
| 2. |
Install the center fascia panel. |
