Hyundai Azera: Rear Seat Assembly Components and Components Location - Rear Seat - Body (Interior and Exterior) - Hyundai Azera 2011-2020 Service ManualHyundai Azera: Rear Seat Assembly Components and Components Location

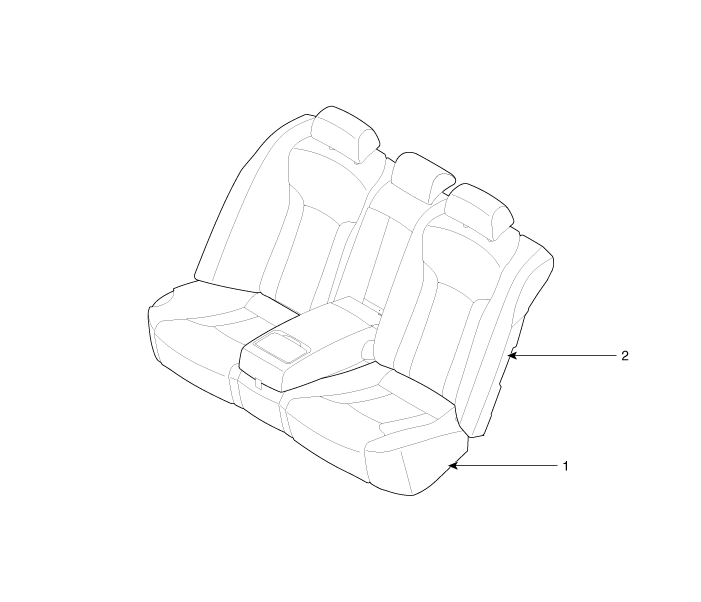

Component Location

1. Rear seat cushion assembly
2. Rear seat back assembly

Components and Components Location
Components Rear Seat Back [RH] 1. Headrest2. Headrest guide3. Rear seat back pad4. Rear seat back cover5. Rear seat back pad support wire6. Rear back armrest7. Hinge bracket cover8. Rear seat ...

Rear Seat Assembly Repair procedures
Replacement 1. After loosening the mounting bolts, then remove the rear seat cushion assembly (A). Tightening torque : 16.7 ~ 25.5N.m (1.7 ~ 2.6kgf.m, 12.3~18.8lb-ft) 2. Disconnect the r ...
