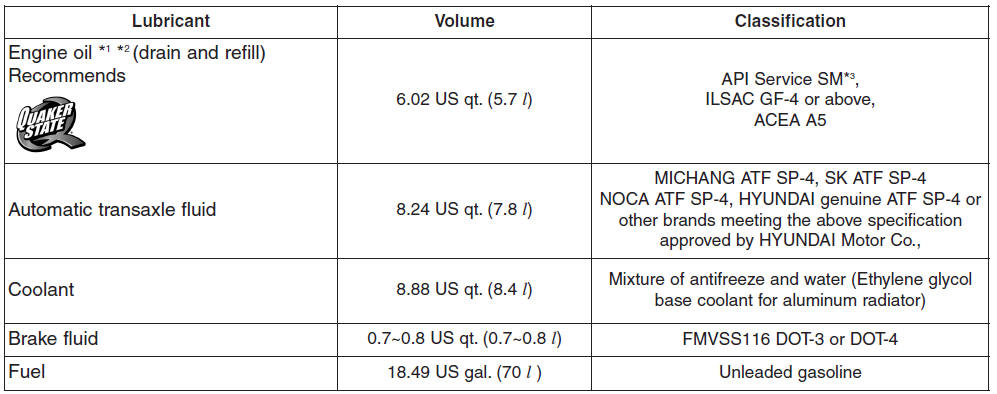

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy. These lubricants and fluids are recommended for use in your vehicle.
Recommended SAE viscosity number
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty
or sandy areas and when the vehicle ...
