Hyundai Azera: Roof antenna Components and Components Location - AVN System - Body Electrical System - Hyundai Azera 2011-2020 Service ManualHyundai Azera: Roof antenna Components and Components Location

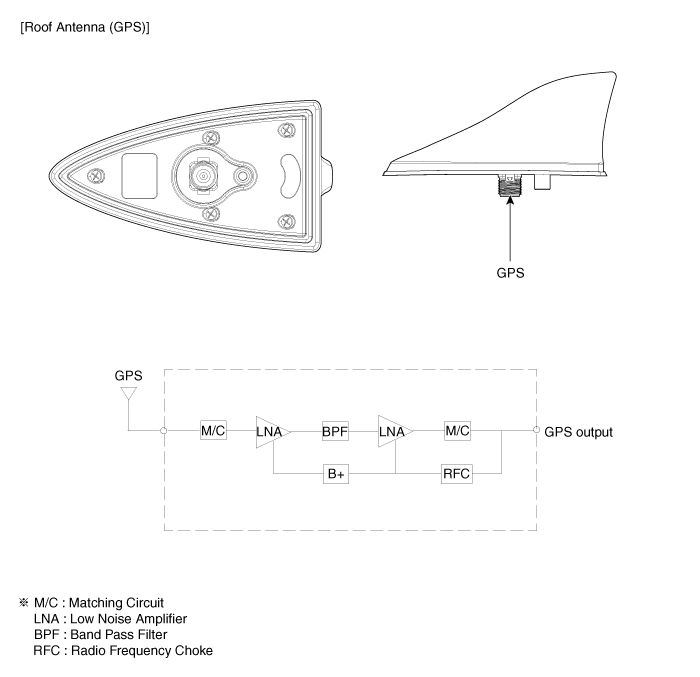

Components

A/V external amplifier Repair procedures
Removal External Amplifier 1. Remove the trunk right luggage side trim. (Refer to Body - "Trunk Trim") 2. Remove the external amplifier (A) after disconnecting the connectors and loosening t ...

Roof antenna Repair procedures
Removal Roof Antenna (GPS) 1. Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly") 2. Disconnect the GPS (A) cable from the roof antenna. 3. Remove the roof antenna after re ...

See also:

Description and Operation
Warning Lamp Activation Warning Lamp Behavior after Ignition On As soon as the operating voltage is applied to the SRSCM ignition input, the SRSCM activates the warning lamp for a LED lamp c ...

Repair procedures
Teaching Procedures 1. Key Teaching Procedure Key teaching must be done after replacing a defective PCM(ECM) or when providing additional keys to the vehicle owner. The procedure starts with a ...

A/V external amplifier Components and Components Location
Components Pin No.Pin nameFunctionPower [W]A1Battery +power input10AA2Battery +power input10AA3Battery +power input10AA4-no connect?A5CAN +CAN +20mAA6CAN -CAN -20mAA7ACCACC/IGN input(on/off)10mAA ...
