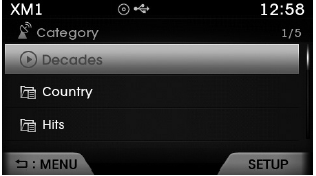

Select the category by using the
, keys and press the
key to select.
Channels for the selected category are played.
