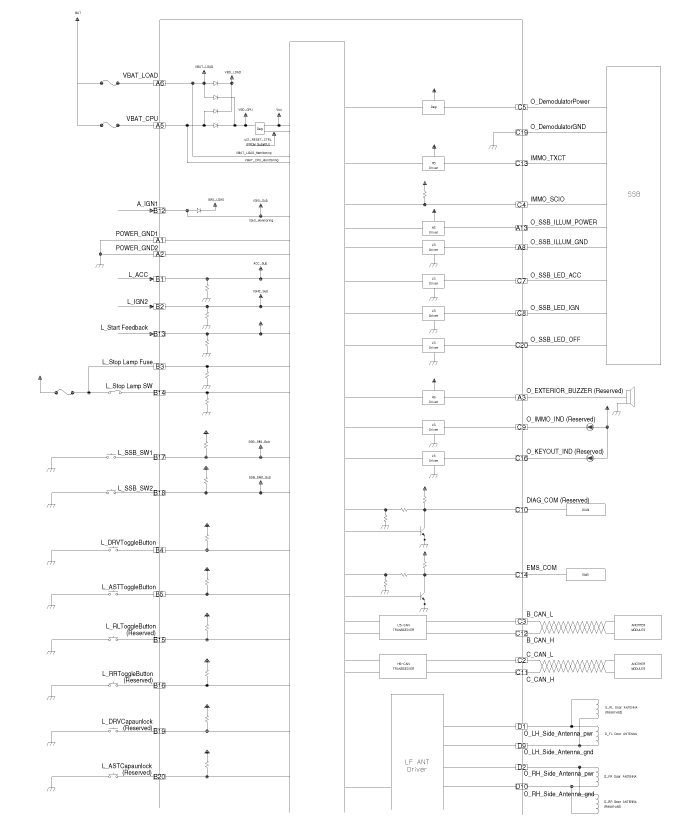

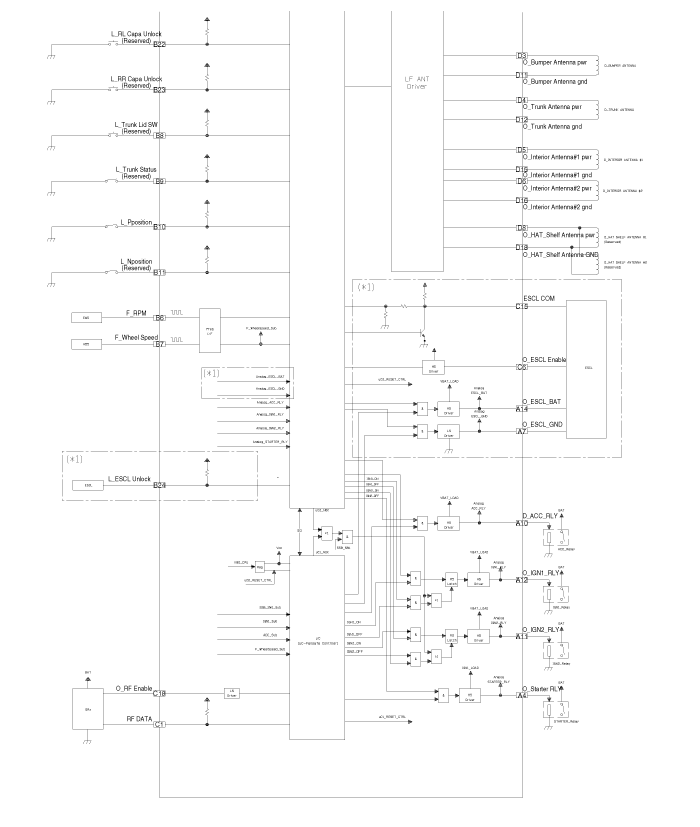

| Circuit Diagram |
Smart key unit Components and Components Location
Component (1)
Connector Pin Information
PinConnector AConnector BConnector CConnector D1Power GND1ACCRF dataAntenna power - LH2Power GND2IGN2C CAN lowAntenna power - RH3-Stop lamp fuseB CAN lowAnt ...
Smart key unit Repair procedures
Removal
-
Take care not to scratch the crash pad and related parts
Smart key unit
1.
Disconnect the negative (-) battery terminal.
2.
Remove the accelerator pedal ...
See also:
Smart key unit Components and Components Location
Component (1)
Connector Pin Information
PinConnector AConnector BConnector CConnector D1Power GND1ACCRF dataAntenna power - LH2Power GND2IGN2C CAN lowAntenna power - RH3-Stop lamp fuseB CAN lowAnt ...
Components and Components Location
Components Location
[Vehicle Components]
1. Automatic transaxle2. Transaxle Control Module (TCM)3. Shift lever4. Date Linke Connector (DLC)
[Transaxle Components]
1. Input speed sensor2. O ...
TPMS Receiver Description and Operation
Description
1.
Mode
(1)
Virgin State
A.
The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.
B.
In this state, there is no Auto-L ...
