Hyundai Azera: Vehicle identification number (VIN)
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Specifications, Consumer information and Reporting safety defects / Vehicle identification number (VIN)
The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining to its ownership, etc.
The number is punched on the engine compartment bulkhead.

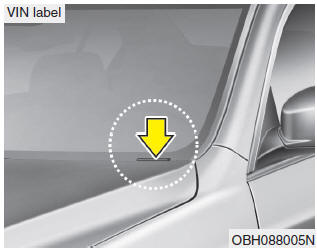

The VIN is also on a plate attached to the top of the dashboard. The number on the plate can easily be seen through the windshield from outside.
