Hyundai Azera: Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Hyundai Azera 2011-2026 Service ManualHyundai Azera: Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Schematic Diagrams

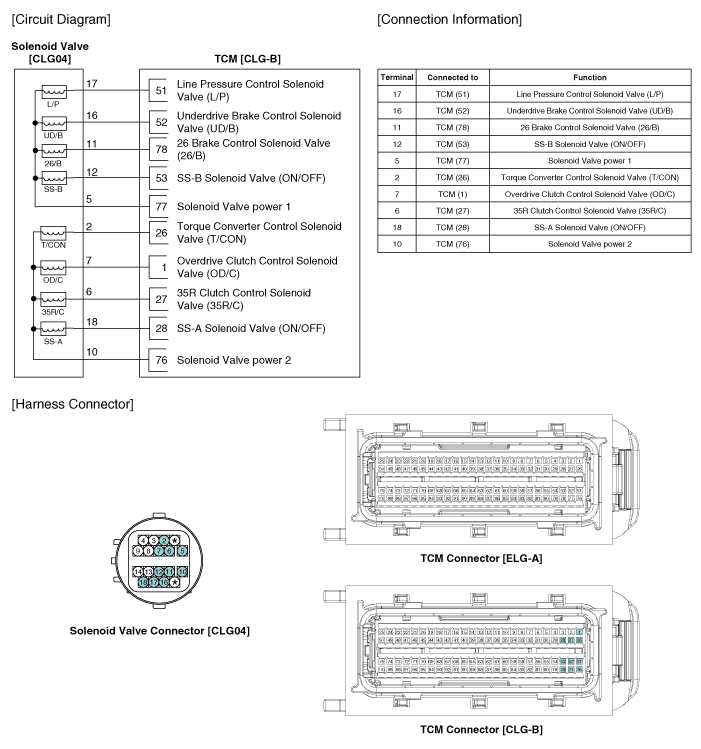

Circuit Diagram

Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Specifications
Specifications Direct control VFS[OD/C] ? Control type : Normal low type Control Pressure [kpa (kgf/cm?, psi)]500.14 ~ 9.81 (5.1 ~ 0.1, 72.54 ~ 1.42)Current value(mA)50~850 Internal resis ...

Overdrive Clutch Control Solenoid Valve(OD/C_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the ...
