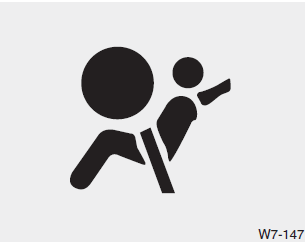

Air bag warning light
The purpose of the air bag warning light in your instrument panel is to alert you of a potential problem with your air bag - Supplemental Restraint System (SRS).
When the ignition switch is turned ON, the warning light should illuminate for approximately 6 seconds, then go off.
How does the air bag system operate
Air bags are activated (able to inflate if necessary) only when the ignition
switch is changed to the ON or START position.
Air bags inflate instantly in the event of a serious frontal or side ...
SRS components and functions
The SRS consists of the following components:
1. Driver's front air bag module
2. Passenger's front air bag module
3. Side impact air bag modules
4. Curtain air bag modules
5. Retract ...
