Hyundai Azera: Basic Mode Screen
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Owners Manual / Features of your vehicle / USB Mode / Basic Mode Screen

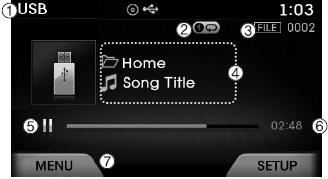

(1) Mode Displays currently operating mode.
(2) Operation State From Repeat / Shuffle / Scan, displays the currently operating function.
(3) File Index Displays the current file number.
(4) File Info Displays information about the current file.
(5) Play State Changes the play/pause state.
(6) Play Time Displays the current play time.
(7) MENU Displays USB Menu.

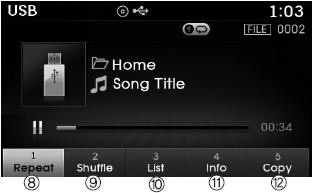

(8) Repeat Turns the Repeat feature on/off.
(9) Shuffle Turns the Shuffle feature on/off.
(10) List Moves to the list screen.
(11) Info Displays additional information for the current file.
(12) Copy Copies the current file into My Music.
