| Components |

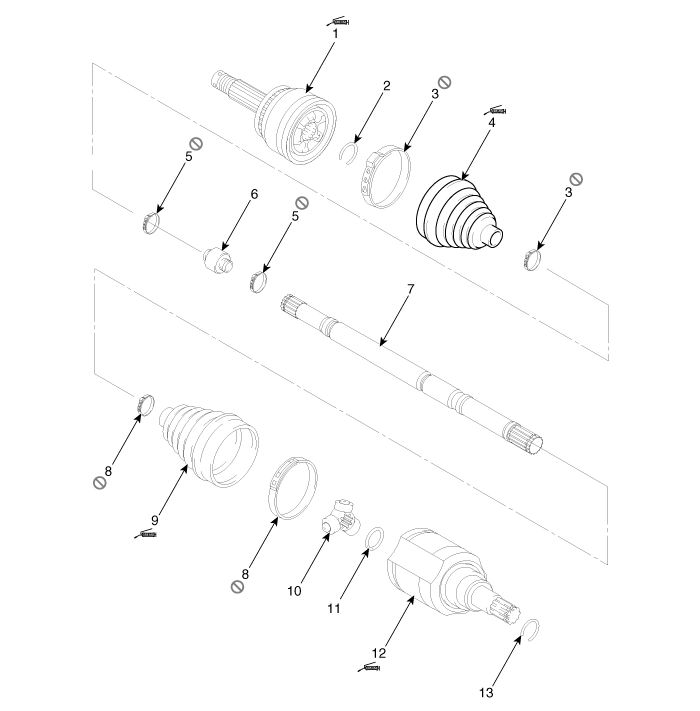

| [LH] |
| 1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot | 5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band | 9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case | 13. Circlip |
| [RH] |
| 1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot | 5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band | 9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case | 13. Circlip |
Dynamic Damper Repair procedures
Replacement
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
2.
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - “TJ Joint”)
3.
...
BJ Boot Repair procedures
Replacement
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
2.
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - “TJ Joint”)
3.
...
