Hyundai Azera: Camshaft Position Sensor (CMPS) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

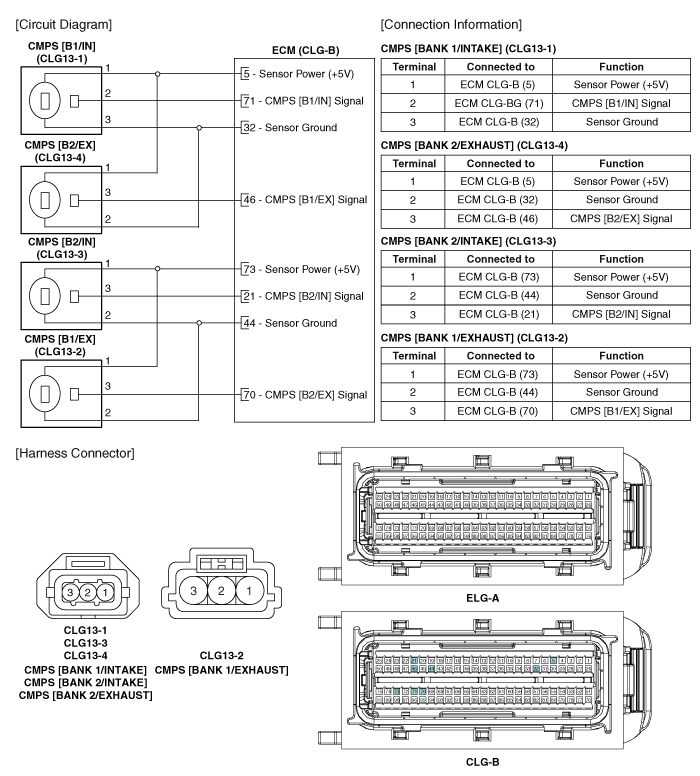

| Circuit Diagram |
Camshaft Position Sensor (CMPS) Troubleshooting
Wave Form
...
Camshaft Position Sensor (CMPS) Repair procedures
Inspection
1.
Check the signal waveform of the CMPS and CKPS using the GDS.
Specification: Refer to “Wave Form”
Removal
•
DON'T remove the camshaft posit ...
