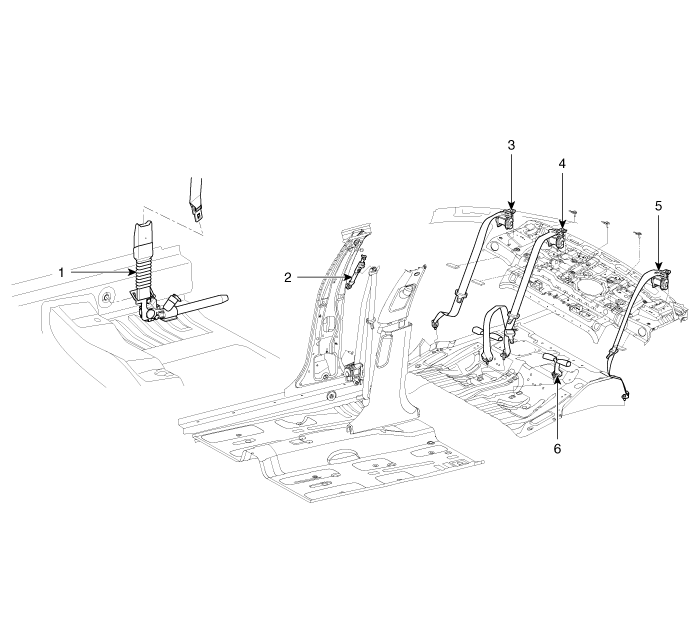

| Components |
| 1. Front seat belt pretensioner 2. Height adjuster 3. Rear seat belt [RH] | 4. Rear seat belt [Center] 5. Rear seat belt [LH] 6. Rear seat belt buckle [LH] |
Front Seat Belt
...
Front Seat Belt Pretensioner Components and Components Location
Component Location
1. Front seat belt pretensioner
...
