| Component Location |

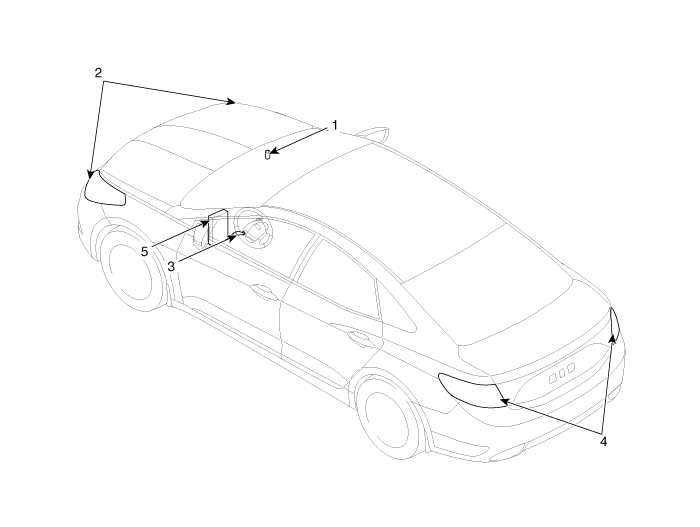

| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. IPM (Intelligent intergrated Platform Module) |
Specifications
Specifications
ItemsSpecificationsRated voltageDC +5VLoadMax. 1mA (When head lamp lighting)Illuminations50 LUX1.42 ± 0.31V50 LUX3.84 ± 0.84V
...
Schematic Diagrams
Circuit Diagram
...
