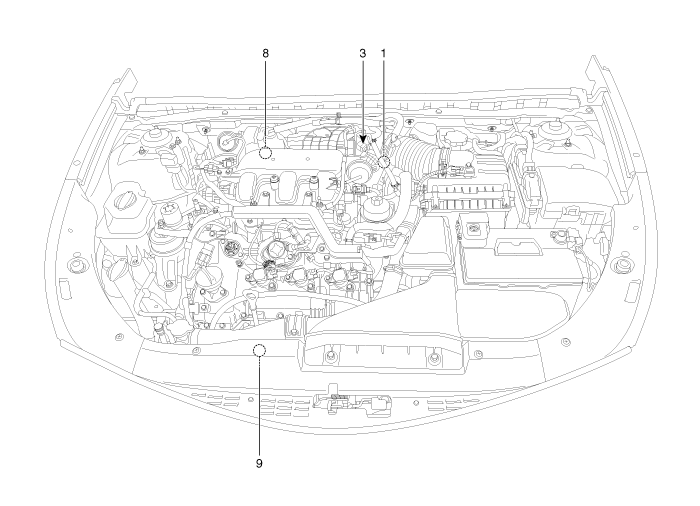

| Components Location |
| 1. PCV Valve 2. Canister 3. Purge Control Solenoid Valve (PCSV) 4. Fuel Tank Pressure Sensor (FTPS) 5. Canister Close Valve (CCV) 6. Fuel Level Sensor (FLS) | 7. Fuel Tank Air Filter 8. Catalytic Converter (WCC, Bank 1) 9. Catalytic Converter (WCC, Bank 2) 10. Catalytic Converter (UCC) 11. On-board Refueling Vapor Recovery (ORVR) Valve |
| 1. PCV Valve | 2. Canister |
|
|
| 3. Purge Control Solenoid Valve (PCSV) | 4. Fuel Tank Pressure Sensor (FTPS) |
|
|
| 5. Canister Close Valve (CCV) 7. Fuel Tank Air Filter | 6. Fuel Level Sensor (FLS) |
|
|
| 8. Catalytic Converter (WCC, Bank 1) | 9. Catalytic Converter (WCC, Bank 2) |
|
|
| 10. Catalytic Converter (UCC) | 11. On-board Refueling Vapor Recovery (ORVR) Valve |
|
|
Schematic Diagrams
Schematic Diagram
...
