| Components Location |

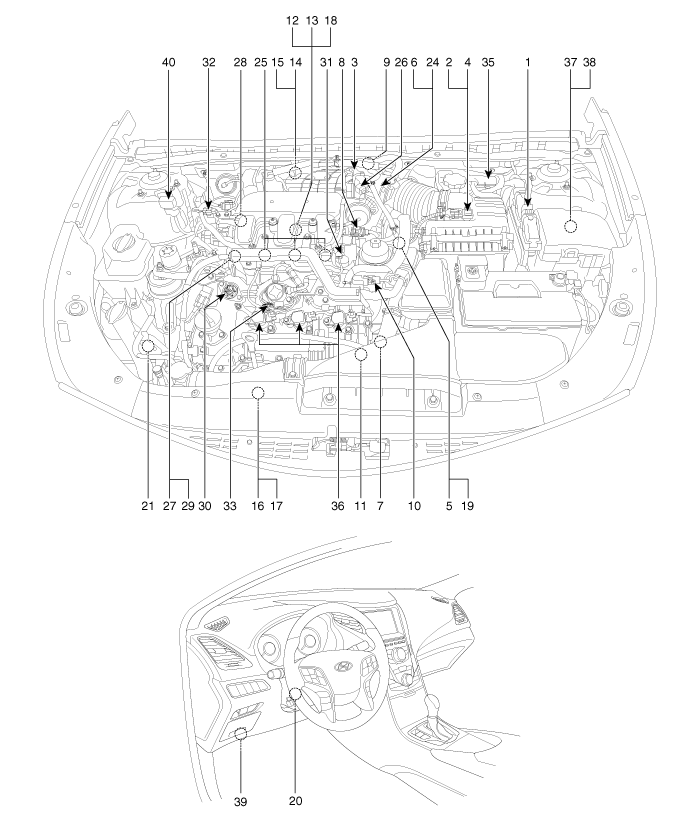

| 1. ECM (Engine Control Module) 2. Barometric Pressure Sensor (BPS) 3. Manifold Absolute Pressure Sensor (MAPS) 4. Intake Air Temperature Sensor (IATS) 5. Engine Coolant Temperature Sensor (ECTS) 6. Throttle Position Sensor (TPS) [integrated into ETC Module] 7. Crankshaft Position Sensor (CKPS) 8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake] 11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust] 12. Knock Sensor (KS) [Bank 1] 13. Knock Sensor (KS) [Bank 2] 14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] 15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] 16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1] 17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2] 18. Rail Pressure Sensor (RPS) 19. CVVT Oil Temperature Sensor (OTS) 20. Accelerator Position Sensor (APS) | 21. A/C Pressure Transducer (APT) 22. Fuel Tank Pressure Sensor (FTPS) 23. Fuel Level Sender (FLS) 24. ETC Motor [integrated into ETC Module] 25. Injector 26. Purge Control Solenoid Valve (PCSV) 27. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] 28. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] 29. CVVT Oil Control Valve (OCV) [Bank 2 / Intake] 30. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust] 31. Variable Intake Solenoid (VIS) Valve #1 32. Variable Intake Solenoid (VIS) Valve #2 33. Fuel Pressure Control Valve (FPCV) 34. Canister Close Valve (CCV) 35. Injector Drive Box (IDB) 36. Ignition Coil 37. Main Relay 38. Fuel Pump Relay 39. Data Link Connector (DLC) [16 Pin] 40. Multi-Purpose Check Connector [20 Pin] |
| 1. ECM (Engine Control Module) | 2. Barometric Pressure Sensor (BPS) 4. Intake Air Temperature Sensor (IATS) |
|
|
| 3. Manifold Absolute Pressure Sensor (MAPS) 6. Throttle Position Sensor (TPS) [integrated into ETC Module] 26. Purge Control Solenoid Valve (PCSV) | 5. Engine Coolant Temperature Sensor (ECTS) |
|
|
| 7. Crankshaft Position Sensor (CKPS) | 8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
|
|
| 9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] | 10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake] |
|
|
| 11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust] | 12. Knock Sensor (KS) [Bank 1] 13. Knock Sensor (KS) [Bank 2] |
|
|
| 14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] | 15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
|
|
| 16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1] | 17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2] |
|
|
| 18. Rail Pressure Sensor (RPS) | 19. CVVT Oil Temperature Sensor (OTS) |
|
|
| 20. Accelerator Position Sensor (APS) | 21. A/C Pressure Transducer (APT) |
|
|

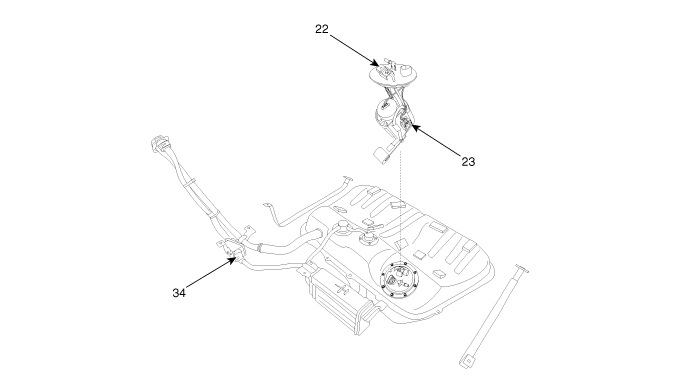

| 22. Fuel Tank Pressure Sensor (FTPS) | 23. Fuel Level Sender (FLS) |
|
|
| 25. Injector | 27. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] 29. CVVT Oil Control Valve (OCV) [Bank 2 / Intake] |
|
|
| 28. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] | 30. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust] |
|
|
| 31. Variable Intake Solenoid (VIS) Valve #1 | 32. Variable Intake Solenoid (VIS) Valve #2 |
|
|
| 33. Fuel Pressure Control Valve (FPCV) 36. Ignition Coil | 35. Injector Drive Box (IDB) |
|
|
| 37. Main Relay 38. Fuel Pump Relay | 39. Data Link Connector (DLC) [16 Pin] |
|
|
| 40. Multi-Purpose Check Connector [20 Pin] | |
|
