Hyundai Azera: Dynamic Damper Components and Components Location - Driveshaft Assembly - Driveshaft and axle - Hyundai Azera 2011-2026 Service ManualHyundai Azera: Dynamic Damper Components and Components Location

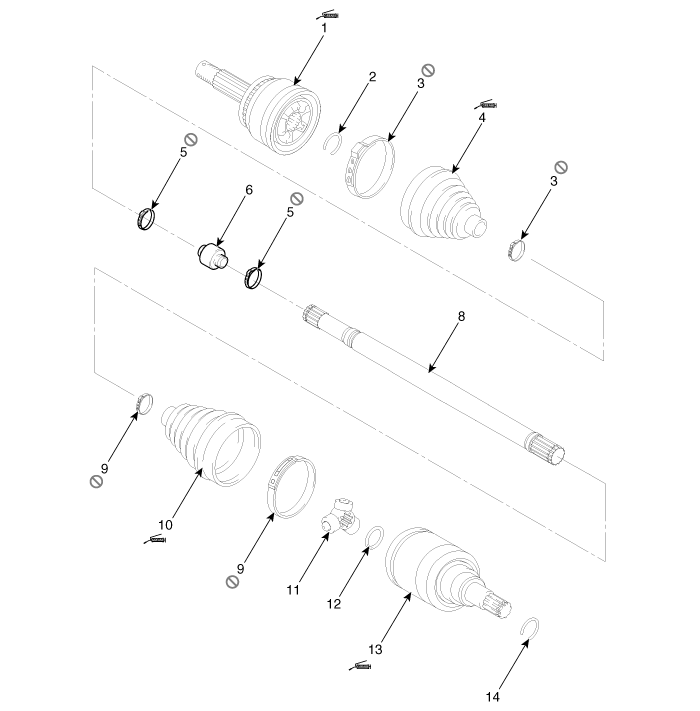

Components

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

TJ Joint Repair procedures
Replacement     • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease. • The boot band should be replaced with a ne ...

Dynamic Damper Repair procedures
Replacement 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft�) 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - “TJ Joint�) 3. ...
