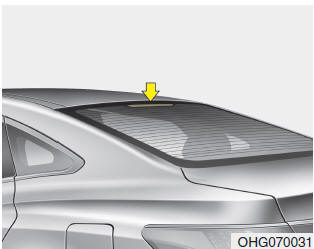

Hyundai Azera: High mounted stop light replacement
Fifth generation HG (2011–2021) / Hyundai Azera 2011-2021 Owners Manual / Maintenance / Light bulbs / High mounted stop light replacement
Fifth generation HG (2011–2021) / Hyundai Azera 2011-2021 Owners Manual / Maintenance / Light bulbs / High mounted stop light replacement
If the light bulb does not operate, have the vehicle be checked by an authorized HYUNDAI dealer.
A skilled technician should check or repair the high mounted stop light. Otherwise, it may affect the performance of the curtain airbags or damage related interior parts of the vehicle.
Rear combination light bulb replacement
(1) Stop and tail light
(2) Rear turn signal light
(3) Backup light
(4) Rear side marker
Stop/tail light and rear side marker
If the light bulb does not operate, have the vehicle checked by an ...
License plate light bulb replacement
1. Turn off the engine.
2. Loosen the retaining screws with a philips head screwdriver.
3. Remove the bulb assembly by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
...
