Hyundai Azera: License plate light bulb replacement
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Maintenance / Light bulbs / License plate light bulb replacement

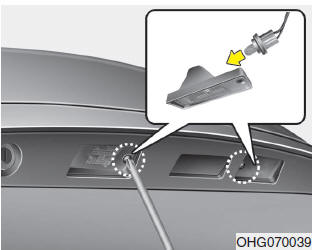

1. Turn off the engine.
2. Loosen the retaining screws with a philips head screwdriver.
3. Remove the bulb assembly by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall the bulb assembly securely with the retaining screws.
High mounted stop light replacement
If the light bulb does not operate, have the vehicle be checked by an authorized
HYUNDAI dealer.
A skilled technician should check or repair the high mounted stop light. Otherwise,
it may affect ...
Interior light bulb replacement

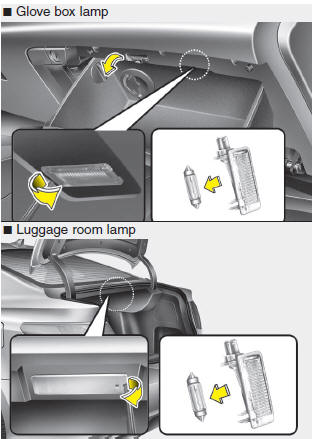

Glove box lamp and luggage room lamp
1. Using a flat-blade screwdriver, gently pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb ...
