Hyundai Azera: Instrument panel overview
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Owners Manual / Your vehicle at a glance / Instrument panel overview

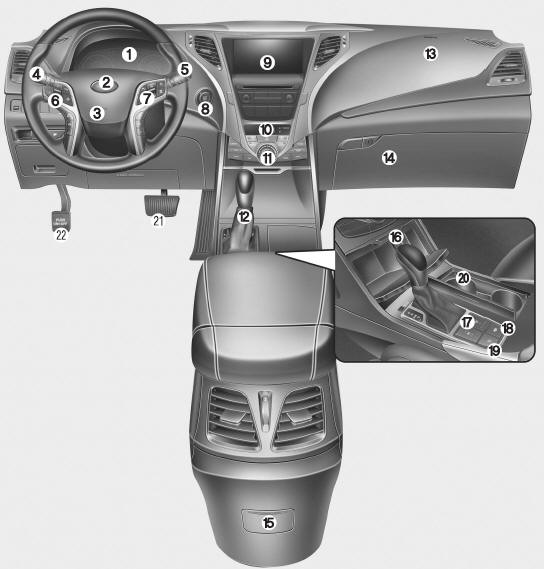

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Steering wheel audio control
7. Cruise control switch
8. ENGINE START/STOP button
9. Navigation/Audio system
10. Hazard warning flasher
11. Climate control system
12. Shift lever
13. Passenger’s front air bag
14. Glove box
15. Power outlet
16. Aux, iPod® and USB
17. Seat warmer or Seat warmer with air ventilation
18. Rear curtain button
19. Rear parking assist system OFF button
20. Cup holder or Ashtray
21. Brake pedal
22. Parking brake
Interior overview
1. Seat
2. Door lock/unlock button
3. Central door lock switch
4. Power window switches
5. Power window lock button
6. Outside rearview mirror control switch
7. Outside rearview mirror fold ...
Engine compartment
1. Engine oil dipstick
2. Engine oil filler cap
3. Engine coolant reservoir
4. Radiator cap
5. Brake fluid reservoir
6. Windshield washer fluid reservoir
7. Air cleaner
8. Positive batte ...
