Hyundai Azera: Knock Sensor (KS) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Knock Sensor (KS) Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Knock Sensor (KS) Schematic Diagrams

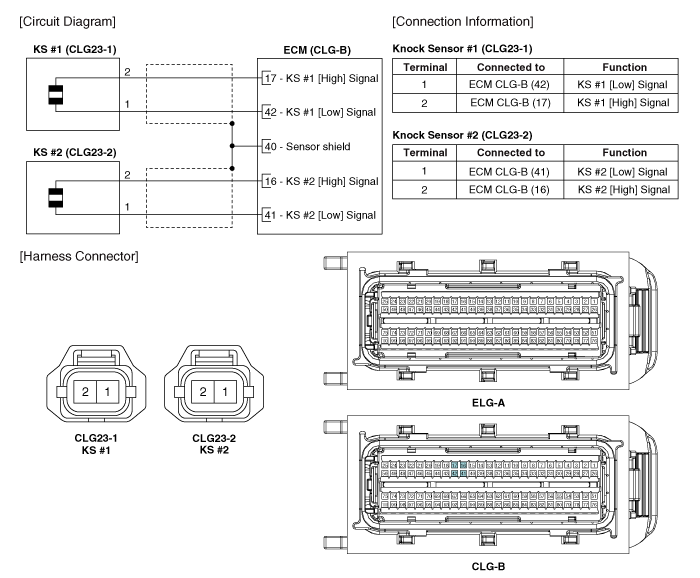

| Circuit Diagram |
Knock Sensor (KS) Specifications
Specification
ItemSpecificationCapacitance (pF)950 ~ 1,350Resistance (M?)4.87
...
Knock Sensor (KS) Repair procedures
Removal
[Knock Sensor #1 (Bank 1)]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Disconnect the knock sensor connector (A).
3.
Remove the intake man ...
