Hyundai Azera: Multimedia Jack Description and Operation - AVN System - Body Electrical System - Hyundai Azera 2011-2026 Service ManualHyundai Azera: Multimedia Jack Description and Operation

Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / AVN System / Multimedia Jack Description and Operation

Description

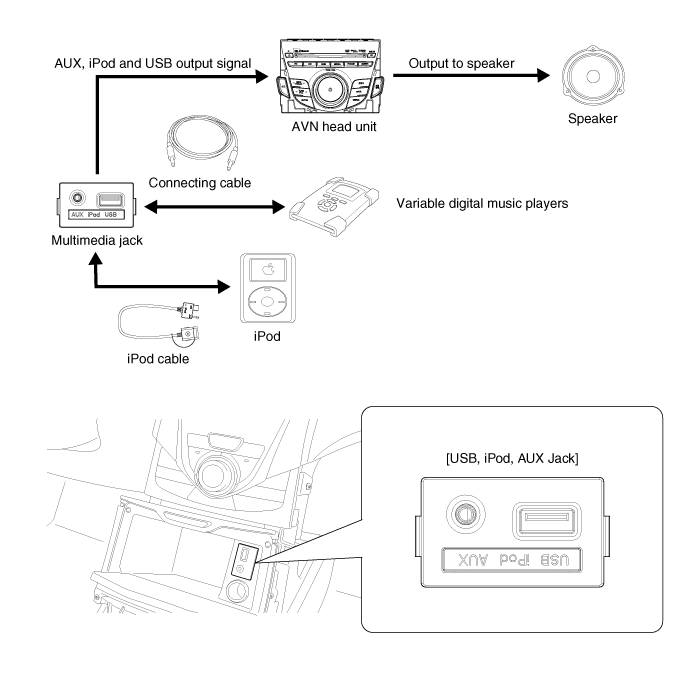

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.
In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

Multimedia Jack Schematic Diagrams
Circuit Diagram ...

Multimedia Jack Repair procedures
Removal 1. Remove the center fascia tray. (Refer to Body - "Floor Console Assembly") 2. Disconnect the connectors (A) from center fascia tray. 3. Remove the multimedia jack (B) from the c ...
