Hyundai Azera: Oil Pressure Switch Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Lubrication System / Oil Pressure Switch Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Lubrication System / Oil Pressure Switch Components and Components Location

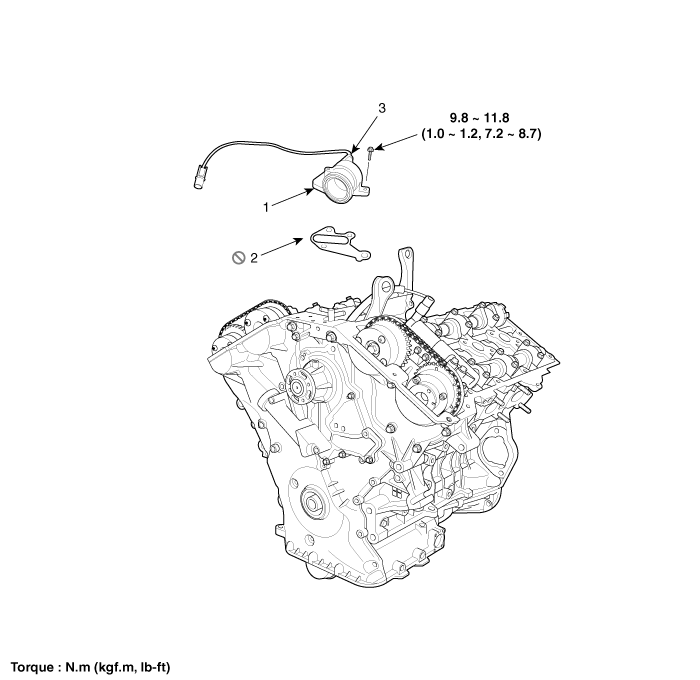

| Components |
| 1. Oil cover 2. Oil cover gasket | 3. Oil pressure switch |
Oil Pump Repair procedures
Removal
1.
Remove the lower oil pan.
(Refer to Lubrication System - "Oil Pan")
2.
Remove the oil pump chain cover (A).
Tightening torque :
9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)
...
Oil Pressure Switch Repair procedures
Removal and Installation
1.
Remove the water pipe.
(Refer to Cooling System - "Water Pipe")
2.
Remove the oil pressure switch (A).
Tightening torque:
34.3 ~ 44.1N.m (3.5 ~ 4.5kgf.m, 25.3 ...
