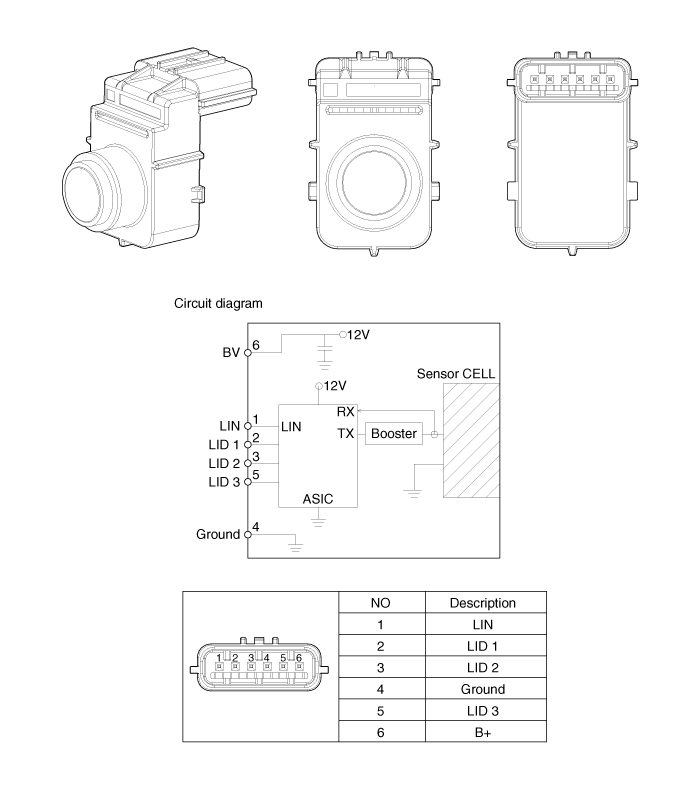

| Circuit diagram |
Description and Operation
Description
When reversing, the driver may have difficult seeing the
blind spots and determine the distance from the object. In order to
provide the driver safety and convenience, back warning ...
Parking Assist Sensor Repair procedures
Removal
[Front parking assist sensor]
1.
Remove the front bumper.
(Refer to Body - "Front Bumper Cover")
2.
Pull out the front sensor (A) from the sensor holder by opening the sensor holder ...
