Hyundai Azera: Power Seat Control Switch Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Schematic Diagrams

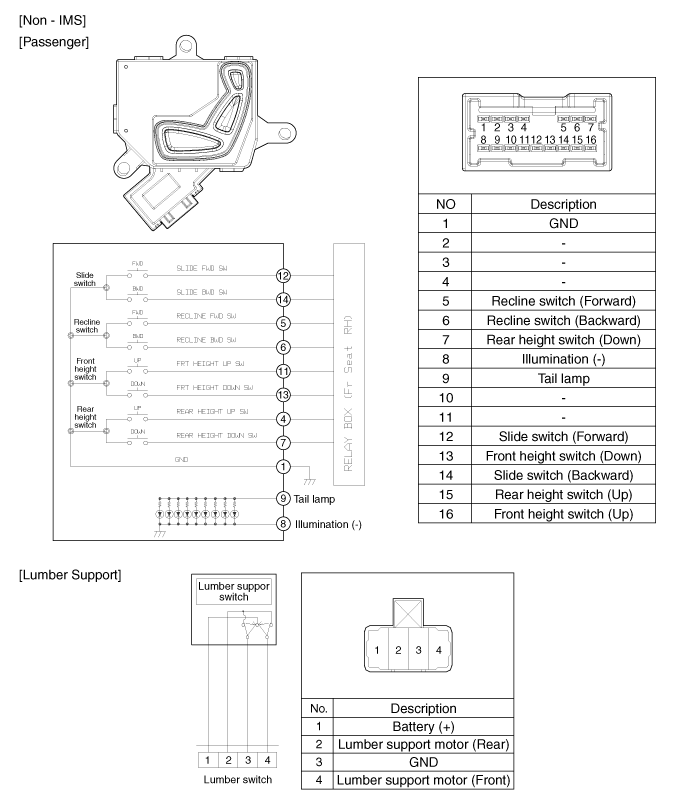

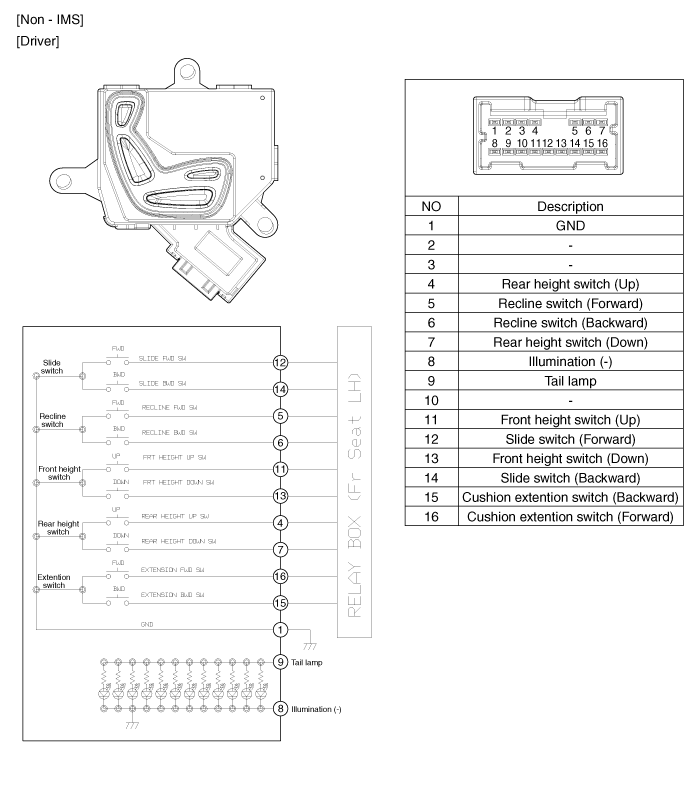

| Circuit Diagram |
Power Seat Motor Repair procedures
Inspection
Power Seat Motor
1.
Disconnect the connectors for each motor.
A : Front height motor
B : Slide motor
C : Rear height motor
D : Recline motor
E : Lumbar support motor
F : Cushion ...
Power Seat Control Switch Repair procedures
Inspection
With the power seat switch in each position, make sure that
continuity exists between the terminals below. If continuity is not as
specified, replace the power seat switch.
A : Lumb ...
