Hyundai Azera: Rear Seat Belt Retractor Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor Components and Components Location

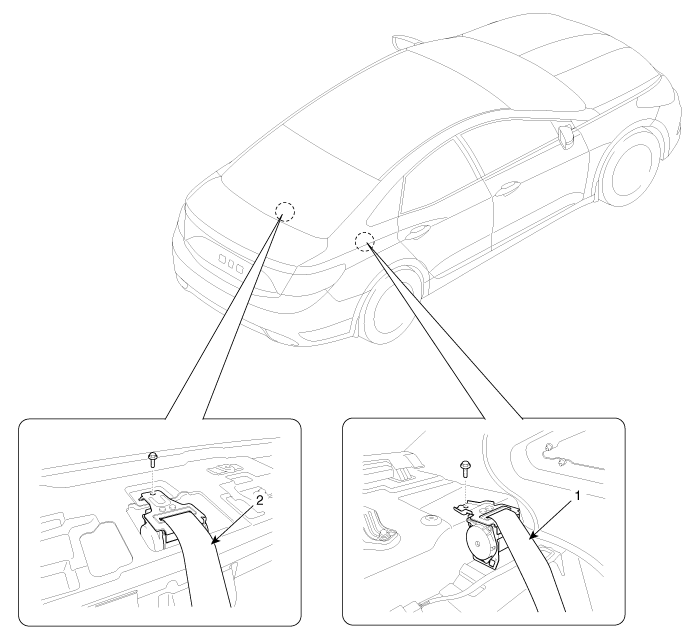

| Component Location |
| 1. Rear seat belt retractor | 2. Rear center seat belt retractor |
