Hyundai Azera: Shift Cable Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Cable Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Cable Components and Components Location

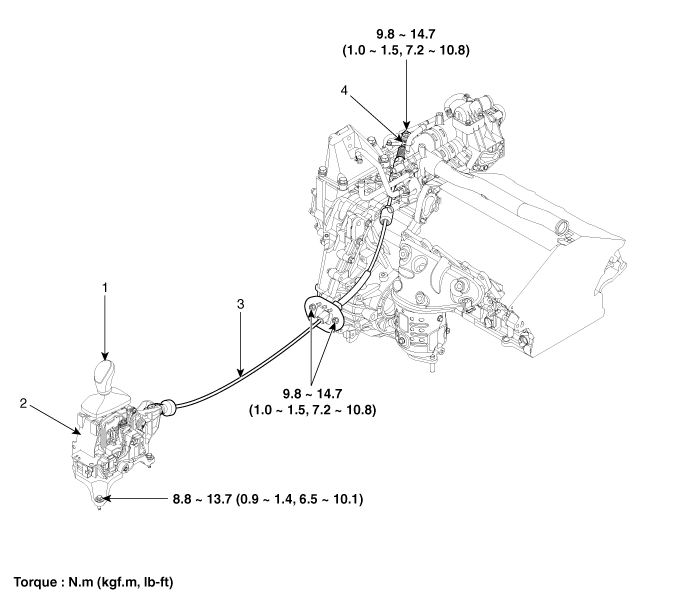

| Components |
| 1. Shift lever knob 2. Shift lever assembly | 3. Control cable assembly 4. Manual control lever (T/M side) |
Shift Lever Repair procedures
Removal
1.
Remove the center console assembly.
(Refer to Body - "Console")
2.
Remove the duct (A).
3.
Disconnect sports mode connector (A).
4.
Remove the shift cable (B).
5.
Remo ...
Shift Cable Repair procedures
Removal
1.
Remove the center console assembly.
(Refer to Body - "Console")
2.
Remove the duct (A).
3.
Remove the control cable (B).
4.
Remove the control cable assembly in the vehicle ...
